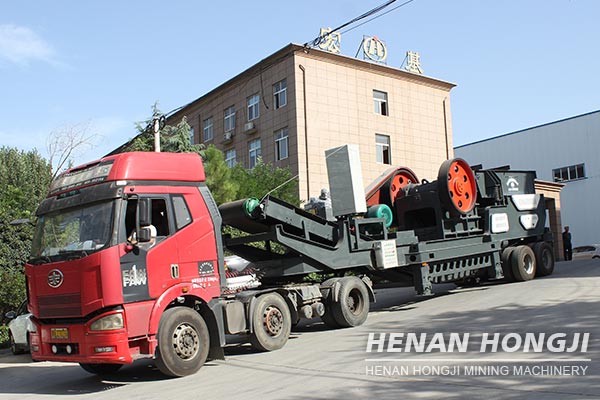

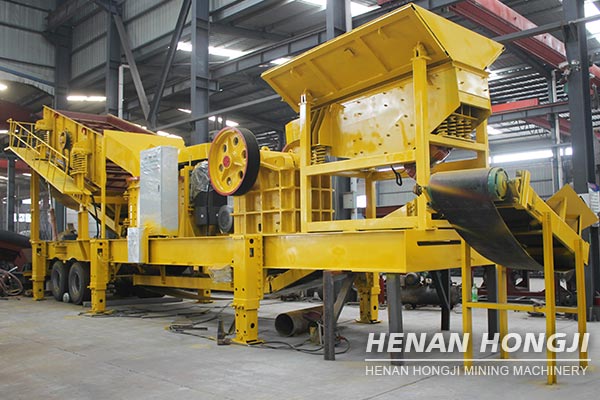

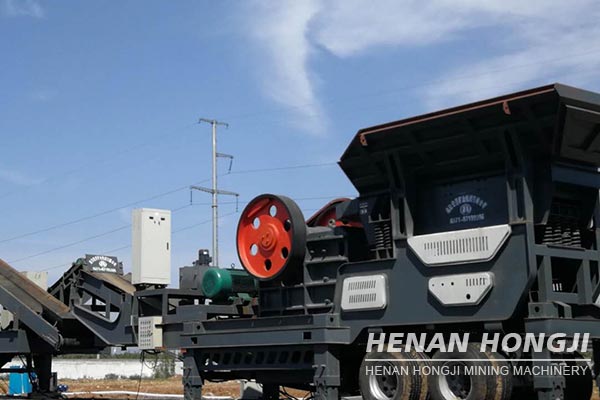

Mobile jaw crushing station

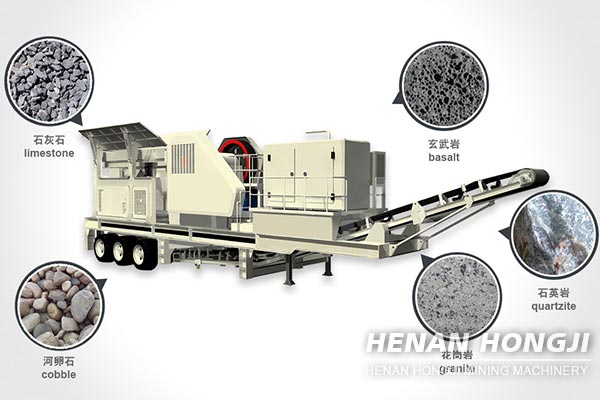

The mobile jaw crusher is a new type of crushing equipment suitable for crushing various ores or rocks with a compressive strength below 250Mpa, such as construction waste, basalt, granite, coal gangue, cement clinker, iron ore, bauxite, quartz stone and.
Scope of application:
mining, stone mining, highway (railway) construction, urban construction waste treatment, etc.
Share With:
Product Description
The mobile jaw crusher is a new type of crushing equipment suitable for crushing various ores or rocks with a compressive strength below 250Mpa, such as construction waste, basalt, granite, coal gangue, cement clinker, iron ore, bauxite, quartz stone and so on.In addition to mobile jaw crushers we also have mobile cone crushers, mobile impact crushers, mobile hammer crushers etc.

Applied material : Rock, gravel, different kinds of ore, fireclay, slag and other hard materials.

Feature
●     1. Move easily. It can go to the crushing place directly. It can move not only on the smooth road,but also on the bumpy road.
●     2. Compact structure and simple operation. Integrative equipment group with trailer save the working area.
●     3. With generator, motor and control box on the trailer, it can work outdoor easily. Equipped with supporting facilities, it can be installed quickly and conveniently.
●     4. Save the cost. By crushing the materials on site, the transportation cost is reduced.





Table Parameters
Model HJ938HD86 HJ1149HD98 HJ1349HD110 HJ1349HD125
Transportation Length (mm) 12600 13500 14500 15200
Transportation Width (mm) 2600 2700 2800 2900
Transportation Height (mm) 3870 4200 4450 4500
Maximum Length (mm) 12500 14000 16100 14700
Maximum Width (mm) 4100 4500 5100 5100
Maximum Height (mm) 4100 4900 5000 5300
Weight (t) 39 57 55 65
Tire Configuration Dual-axial Dual-axial Dual-axial Dual-axial
Jaw Crusher HD86 HD98 HD110 HD125
Maximum Feeding Size (mm) 500 550 660 800
Discharge Opening Size (mm) 50-150 75-175 100-200 125-225
Capacity (t/h) 85-275 110-350 215-510 280-650
Vibrating Model ZSW380×95 ZSW420×110 ZSW490×130 ZSW490×130
Main Belt Conveyor B800×8.5M B1000×9.5M B1000×11M B1200×11M
Side-opening Belt conveyor (Optional) B500×3M B650×3.5M B650×4M B650×4M
Genset (Optional) (kw) 200 250 270 400
Service Support


- 48-hour idling test machine before leaving the factory.

- You can take the materials to the factory test machine.

- We will customize the solution according to your needs.
