Rotary Kiln

Hongji Group can professionally produce Rotary Kiln with diameter Ф1-Ф7m. which is widely used in cement metallurgy, steel, chemical, refractory, ceramsite industries. Hongji also can design and customize non-standard rotary kiln according to customer's

Scope of application:
Cement, lime, refractory materials, metakaolin, titanium dioxide, alumina, vermiculite, iron ore pellets, etc. It can also be used in the front-end of metal extraction, preparing ore for smelting by roasting various sulfide ores.

Chat Now Send E-mail

Share With:

Product Description

Feature Table Parameters Service Support

Product Description

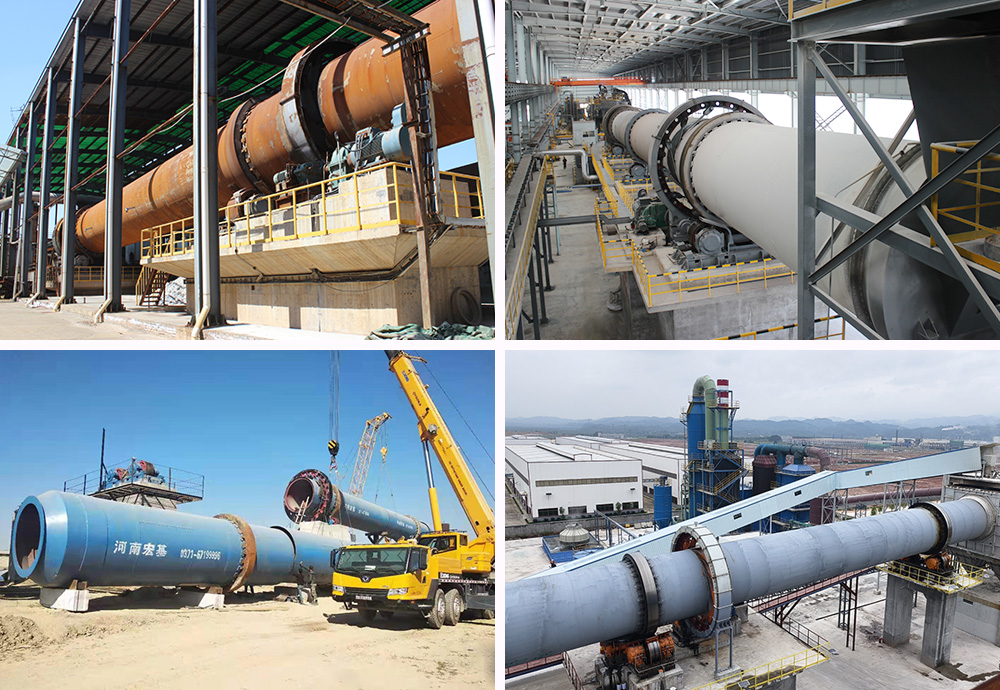

Rotary kiln is a high-temperature processing device used to heat materials to high temperatures through kneading in a continuous process. Materials produced using rotary kilns include: cement, lime, refractory materials, metakaolin, titanium dioxide, alumina, vermiculite, iron ore pellets, etc. It can also be used in the front-end of metal extraction, preparing ore for smelting by roasting various sulfide ores.

Applied material :Cement, lime, Dolomite, Limestone, Bauxite, Ceramsite, Light Expanded Clay Aggregate, sponge iron, Lead, zinc mineral raw material, Magnesium, Petroleum, Ceramic Sand, Kaolin, Hazardous waste, sludge waste, oily sludge, industrial waste, smelt lateritic nickel ores, nickel pig iron, etc.

Feature

● 1. Good calcination, high product quality;

● 2. High capacity;

● 3. Simple structure, reliable performance;

● 4. Easy operation.

Table Parameters

Product Specification（m）	Diameter （m）	Length （m）	Capacity （t/d）	Rotation speed （r/min）	Motor power （kw）	Total weight （t）
Φ2.0×40	2	40	160	0.23-2.26	37	119
Φ2.2×45	2.2	45	180	0.21-2.44	45	128
Φ2.5×40	2.5	40	200	0.44-2.44	55	149.61
Φ2.5×50	2.5	50	250	0.62-1.86	55	187.37
Φ2.5×54	2.5	54	300	0.48-1.45	55	196.29
Φ2.7×42	2.7	42	350	0.10-1.52	55	198.5
Φ2.8×44	2.8	44	450	0.437-2.18	55	201.58
Φ3.0×45	3	45	500	0.5-2.47	75	210.94
Φ3.0×48	3	48	700	0.6-3.48	100	237
Φ3.0×60	3	60	800	0.3-2	100	310
Φ3.2×50	3.5	50	1000	0.6-3	125	278
Φ3.3×52	3.3	52	1300	0.266-2.66	125	283
Φ3.5×54	3.5	54	1500	0.55-3.4	220	363
Φ3.6×70	3.6	70	1800	0.25-1.25	125	419
Φ4.0×56	4	56	2300	0.41-4.07	315	456
Φ4.0×60	4	60	2500	0.396-3.96	315	510
Φ4.2×60	4.2	60	2750	0.41-4.07	375	633
Φ4.3×60	4.3	60	3200	0.396-3.96	375	583
Φ4.5×66	4.5	66	4000	0.41-4.1	560	710.4
Φ4.7×74	4.7	74	4500	0.35-4	630	849
Φ4.8×74	4.8	74	5000	0.396-3.96	630	899
Φ5.0×74	5	74	6000	0.35-4	710	944
Φ5.6×87	5.6	87	8000	Max4.23	800	1265
Φ6.0×95	6	95	10000	Max5	950×2	1659
