Impact Crusher

Impact Crushers are ideal processing machines for primary and secondary crushing of raw materials for the steel and iron industry, hard coal and lignite, limestone, gypsum or minerals. These are also extensively used for the tertiary crushing of ......

Scope of application:
Ore crushing, railway, highway, energy, cement, chemical industry, construction, etc

Chat Now Send E-mail

Share With:

Product Description

Feature Table Parameters Service Support

Product Description

Hongji's impact crushers feature a unique combination of heavy rotor design, materials selected for good wear resistance and crusher chamber design. This combination has proven revolutionary in improving capacity and product quality and in reducing operating and wear costs. The size of the discharge material can be adjusted, and the crushing specifications are diversified. The impact crushers deliver unbeatable performances in primary, secondary, tertiary and recycling applications.

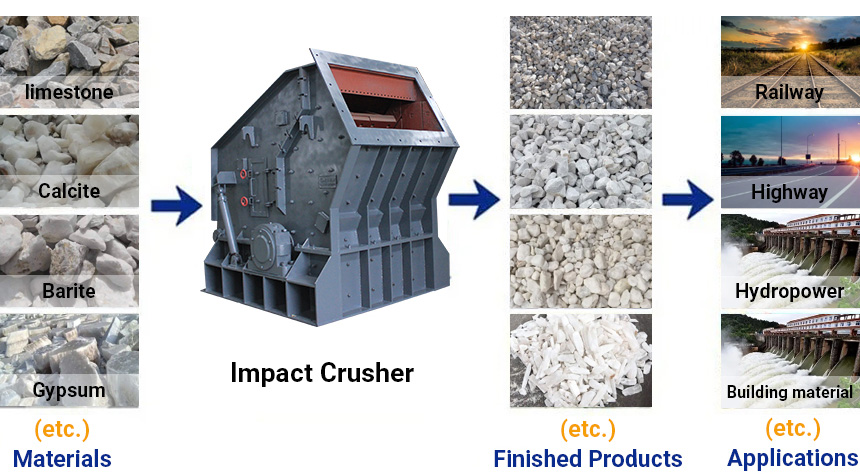

Applied material : limestone, granite, cobble, dolomite, bluestone, iron ore, construction waste, glass, cement clinker, etc.

Feature

● 1. The shape of crushed material will increasingly become cubic.

● 2. Crushing ratio can be set at an extremely large value: normally at 20 and maximum up to 80.

● 3. The high crushing efficiency reduces the power consumption.

● 4. Lighter in machine weight as against capacity, saving installation cost.

● 5. A high crushing efficiency reduces the power consumption.

● 6. The rotor is made of high-carbon steel casting, and has wedge-shape hammer holding grooves extending parallel to the shaft.

Table Parameters

Model	Feed opening（mm）	The Maximum Feeding Size（mm）	Capacity （t/h）	Power （kw）	Overall dimension （L×W×H）（mm）	Total weight（t）
PF-1007	400×730	300	30-70	37-45	2330×1660×2300	12
PF-1010	400×1080	350	50-90	45-55	2370×1700×2390	15
PF-1210	400×1080	350	70-130	110	2680×2160×2800	17.7
PF-1214	400×1430	350	80-180	132	2650×2460×2800	22.4
PF-1315	860×1520	500	100-280	200	3180×2720×3120	27
PF-1320	993×2000	500	140-380	250	3220×3100×3120	34
PF-1520	830×2040	700	200-550	315-400	3959×3564×3330	50.6
PF-1820	1260×2040	800	400-800	630-710	4400×3866×4009	83.21
