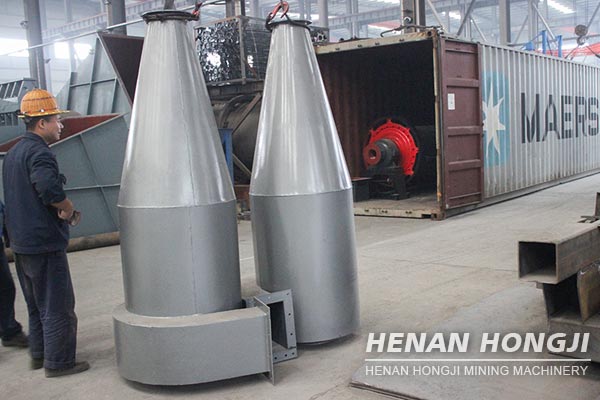

Lime flour separator

The powder Classifier is operated under negative pressure. The material for grinding is fed from the inlet of the powder separator. The vortex flow entering the primary air outlet is separated by the scattering disc and dispersed by the suspension and dispersion mechanism. After that, a coarse subdivision level is realized in the horizontal vortex field formed by the airflow entering through the secondary tuyere in the classification zone, and the fine powder enters the cage and is drawn from the fine powder outlet by the negative pressure air into the subsequent cyclone collector, and is collected by the collector. Finished product, the coarse powder falls into the cone and is discharged through the coarse powder outlet and returned to the mill for grinding again.



●     2. Convenient wear parts replacement and maintenance, long service life;

●     3. Energy saving, high efficiency and large capacity;

●     4. Low investment, environmental protection and convenient installation.




Model	Fineness (%)	Wind Capacity (m3/h)	Rotate speed (rpm)	Power (kw)	Max capacity (t/h)	Capacity (t/h)
TS-I	0-3	16000	250-500	15	50	10-18
TS-II	0-3	22000	220-450	18.5	90	15-28
TS-III	0-3	30000	180-400	22	120	20-40
TS-IV	0-3	45000	160-340	30	150	30-50
TS-V	0-3	60000	130-300	30	210	40-70
TS-VI	0-3	75000	130-260	37	260	50-85
TS-VII	0-3	95000	120-240	45	330	75-110
TS-VIII	0-3	120000	110-200	55	400	95-130
TS-IX	0-3	150000	110-180	75	500	110-160
TS-X	0-3	180000	110-160	110	600	130-190
