Jaw Crusher

Scope of application:
Mining, metallurgy, construction, highway, railroad, and water conservancy, etc.

Share With:

Product Description

Feature Table Parameters Service Support

Product Description

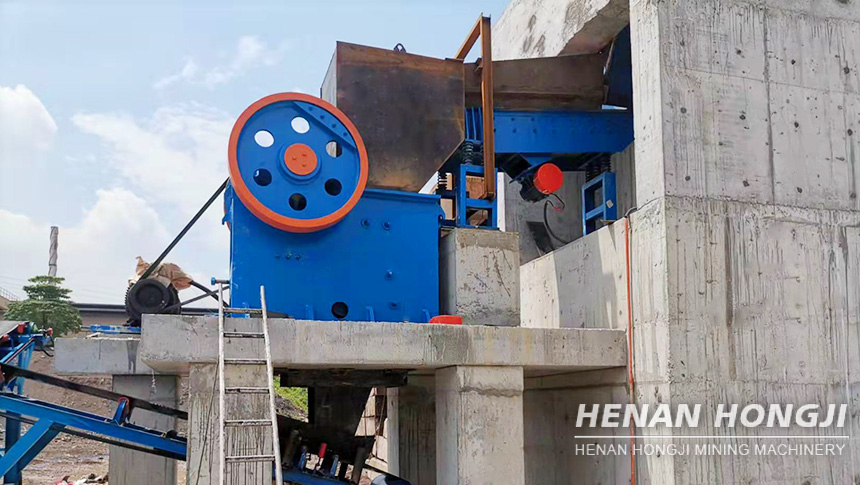

Jaw crushers are mainly used as primary crushers. Their main purpose is to reduce rocks to smaller sizes for the next crushing stages. Jaw crushers are a popular alternative to primary gyratory crushers, since they can process large amounts of hard material efficiently. Due to their smaller physical size, which takes advantages of high efficiency, strong crushing ability and low investment costs. Jaw crushers are also ideal for tight spaces, such as underground mining and mobile crushing applications.

Applied material : Rock, gravel, different kinds of ore, fireclay, slag and other hard materials.

Feature

● Adjustable Discharge Opening: The gap between the jaws can be adjusted to control the size of the crushed material. This allows for customization of the output size.

● High Reduction Ratio: Jaw crushers are designed to provide a high reduction ratio, meaning they can crush large materials into smaller particles efficiently.

● Strong and Durable Construction: Jaw crushers are built with a robust and sturdy design to handle heavy-duty applications and withstand the rigors of continuous operation.

● Efficient Crushing Performance: The design of the crushing chamber and the kinematics of the movable jaw contribute to efficient crushing, resulting in high productivity.

● Energy Efficiency: Jaw crushers are designed to optimize energy consumption. Advanced technologies, such as hydraulic systems and flywheel inertia, contribute to reducing power usage.

● Compact Design: Jaw crushers are available in various sizes and compact designs, making them suitable for both stationary and mobile applications. Their compact size allows for easy transportation and installation in different locations.

Table Parameters

Model	Max.feeding size (mm)	discharge opening (mm)	capacity (t/h)	Motor power (kw)	Total weight (t)	Dimensions（L×W×H）
PE-150×250	125	10-40	1-3	5.5	0.8	720×660×850
PE-200×300	180	15-50	2-6	7.5	1.2	910×750×990
PE-200×350	180	18-70	3-10	11	1.5	1000×870×990
PE-250×400	210	20-60	5-21	15	2.8	1300×1090×1270
PE-400×600	340	40-100	16-64	30	7	1730×1730×1630
PE-500×750	425	50-100	40-110	55	12	1980×2080×1870
PE-600×750	500	150-200	80-240	55	15.8	2070×2000×1920
PE-600×900	500	65-160	50-160	55	17	2190×2206×2300
PE-750×1060	630	80-140	110-320	110	29	2660×2430×2800
PE-800×1060	640	130-190	130-330	110	29.8	2710×2430×2800
PE-830×1060	650	160-220	150-336	110	30.7	2740×2430×2800
PE-870×1060	660	200-260	190-336	110	31.5	2810×2430×2800
PE-900×1060	685	230-290	230-390	110	33	2870×2420×2940
PE-900×1200	750	95-165	220-380	110	52	3380×2870×3330
PE-1000×1200	850	195-265	315-500	110	55	3480×2876×3330
PE-1200×1500	1020	150-350	400-800	160-220	100.9	4200×3300×3500
PE-1500×1800	1200	220-350	500-1000	280-355	139	5160×3660×4248
PEX-150×750	120	18-48	8-25	15	3.8	1200×1530×1060
PEX-250×750	210	25-60	13-35	22	5.5	1380×1750×1540
PEX-250×1000	210	25-60	16-52	30	7	1560×1950×1390
PEX-250×1200	210	25-60	20-61	37	9.7	2140×1660×1500
PEX-300×1300	250	20-90	16-105	55	15.6	2720×1950×1600
