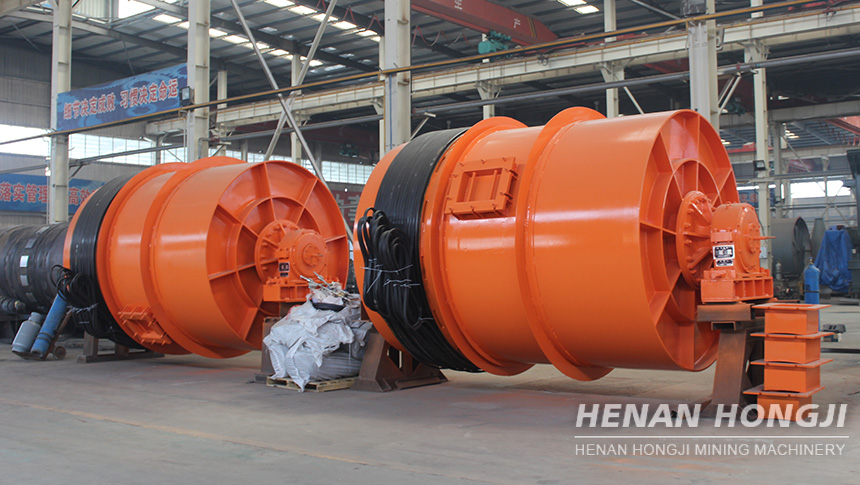

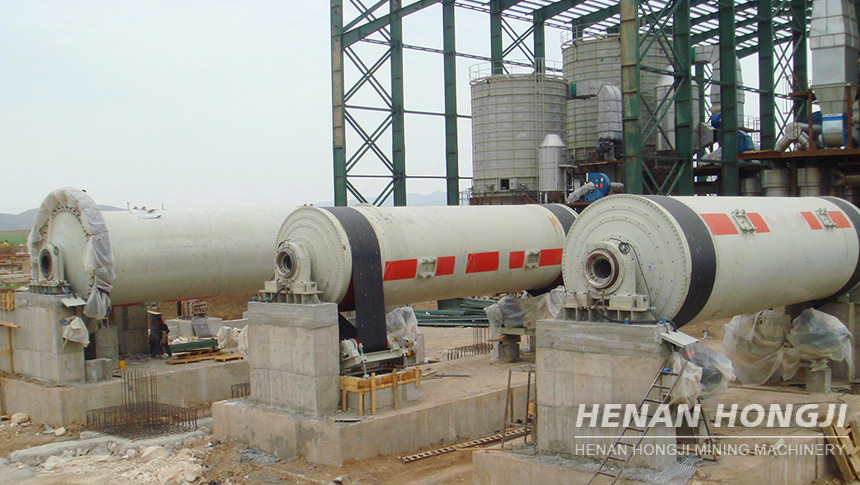

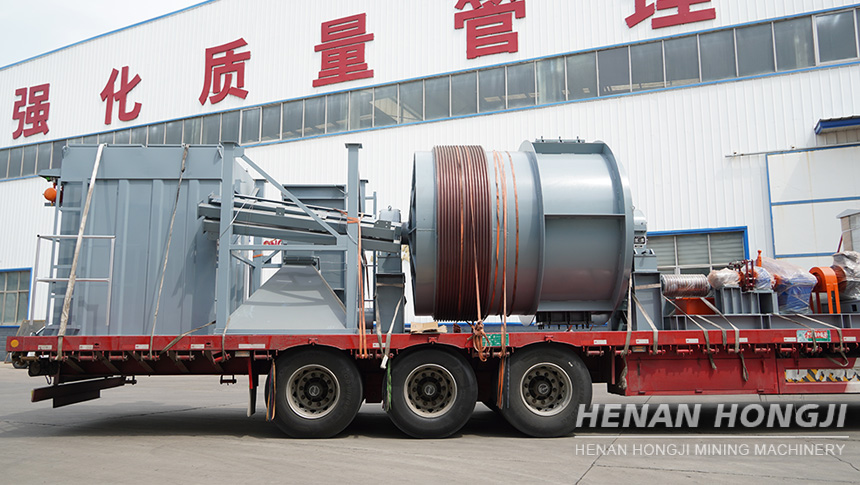

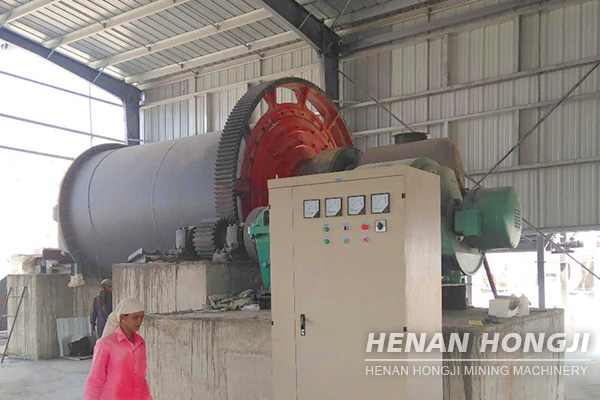

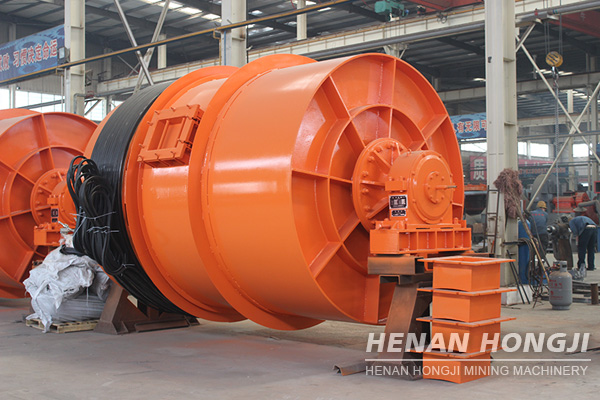

Ceramic ball mill

Ceramic ball mill is mainly used for milling of the raw materials. It has two types, wet mills and dry mills. Users can choose the proper model, lining board and media as per the factors......

Scope of application:
Metallurgy, chemical, glass and other industries, in recent years, also used in the sand making industry for construction sand.

Chat Now Send E-mail

Share With:

Product Description

Feature Table Parameters Service Support

Product Description

Ceramic ball mill is mainly used for milling of the raw materials. It has two types, wet mills and dry mills. Users can choose the proper model, lining board and media as per the factors, such as: materials specific gravity and hardness, as well as output, etc. It has the advantages of compact structure,high efficiency and small granularity.It can be designed according to user's especial requirements.

Applied material : Rock, gravel, different kinds of ore, fireclay, slag and other hard materials.

Feature

● 1. High grinding ratio.

● 2. Large production capacity.

● 3. Easy operation, stable& reliable performance.

● 4. Smaller built-up space in comparison with mills seated on trunnion bearings.

● 5. Wide applicability and Great yield.

● 6. Oil mist lubrication device guarantees the lubrication of all gears.

Table Parameters

Model	Size of barrel (mm)	Material weight per mill (Mt)	Effective volume(m³)	Rotation speed (r/min)	Motor power (kw)	Net weight(kg)
SSTCQ100	Ø750Χ900	0.1	0.4	46	2.2	800
SSTCQ200	Ø900Χ1050	0.2	0.67	36	3	1000
SSTCQ300	Ø950Χ1200	0.3	0.83	35	4	1300
SSTCQ500	Ø1220Χ1250	0.5	1.43	30	5.5	1500
SSTCQ1000	Ø1600Χ1700	1.0	3.4	26	11	2200
SSTCQ1500	Ø1800Χ2100	1.5	5.3	23	15	3000
SSTCQ2000	Ø1900Χ2100	2.0	6	22	18.5	3500
SSTCQ3000	Ø2080Χ2600	3.0	8.8	24	30	4200
