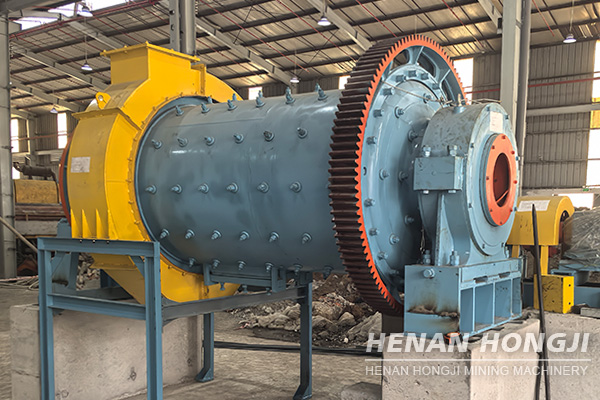

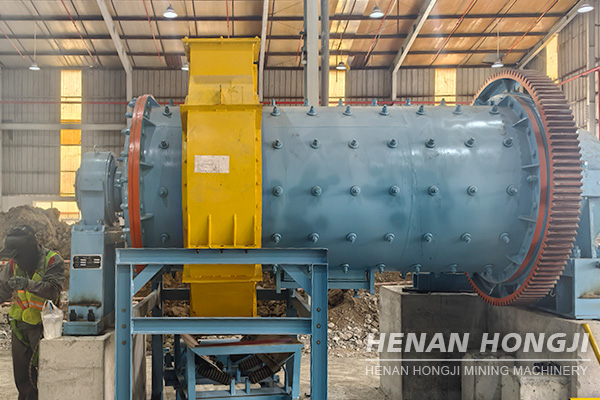

Rod Mill

Rod Mill, is a grinding machine similar to a ball mill. The obvious difference between the two is the grinding medium. Rod mill is named after the medium is a steel rod.

Scope of application:
metallurgy, chemical, glass and other industries, in recent years, also used in the sand making industry for construction sand.

Chat Now Send E-mail

Share With:

Product Description

Feature Table Parameters Service Support

Product Description

Rod Mill, is a grinding machine similar to a ball mill. The obvious difference between the two is the grinding medium. Rod mill is named after the medium is a steel rod. The latter's grinding medium is undoubtedly a steel ball. Both of them can be used for grinding various metal ore and non-metal ore. In some case, rod mill is also called rod type sand making machine, which is mostly used for making sand.

Applied material : Rock, gravel, different kinds of ore, fireclay, slag and other hard materials.

Feature

● 1. High grinding ratio.

● 2. Large production capacity.

● 3. Easy operation, stable& reliable performance.

● 4. Smaller built-up space in comparison with mills seated on trunnion bearings.

● 5. Wide applicability and Great yield.

● 6. Oil mist lubrication device guarantees the lubrication of all gears.

Table Parameters

Model	Shell Specifications （mm）		Shell rotation speed （r/min）	Feeding size (mm)	Discharging size (mm)	Processing capacity (t/h)	Power (kw)	Total weight (t)
Model	Diameter	Length	Shell rotation speed （r/min）	Feeding size (mm)	Discharging size (mm)	Processing capacity (t/h)	Power (kw)	Total weight (t)
MBS0918	900	1800	36-38	≤25	0.833-0.147	0.62-3.2	18.5	5.9
MBS0924	900	2400	36	≤25	0.833-0.147	0.81-4.3	22	6.7
MBS1224	1200	2400	36	≤25	0.833-0.147	1.1-4.9	30	13.9
MBS1530	1500	3000	29.7	≤25	0.833-0.147	2.4-7.5	75	19.8
MBS1830	1830	3000	25.4	≤25	0.833-0.147	4.8-11.6	130	34.9
MBS2130	2100	3000	23.7	≤25	0.833-0.147	14-35	155	46.5
MBS2136	2100	3600	23.7	≤25	0.833-0.147	19-43	180	48.7
MBS2430	2400	3000	21	≤50	0.833-0.147	25-65	245	59.7
MBS2736	2700	3600	20.7	≤50	0.833-0.147	32-86	380	92.5
MBS2740	2700	4000	20.7	≤50	0.833-0.147	32-92	400	95
MBS3245	3200	4500	18	≤50	0.833-0.147	64-180	630	149
