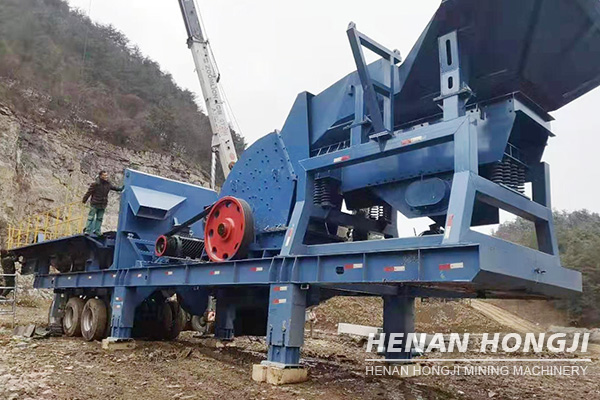

Mobile heavy hammer crusher plant

Mobile heavy hammer crusher is used to crush large stone into gravels and sand due to large crushing ratio. It could crush and screen large reinforced concrete in concrete recycling industry.
Scope of application:
primary coarse & medium crusher in mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy.
Share With:
Product Description
Mobile hammer crushing plant is a tire-type mobile crushing station mainly crushed by heavy hammer crushers. Heavy hammer crushers can directly crush materials with a particle size of 600-1200 mm to below 25 mm at one time. The equipment is suitable for crushing various medium-hard and brittle materials such as limestone with a compressive strength not exceeding 150 MPa and a calcium content higher than 40. The mobile heavy hammer crusher has a large crushing ratio and a simple structure. It is assembled on the same frame with the feeder and vibrating screen, and crushing and screening are integrated. The price is relatively cheap and it has a wide range of applications, especially for construction waste.

Applied material : Rock, gravel, different kinds of ore, fireclay, slag and other hard materials.

Feature
●     1. High Quality:The whole line is highly automatic. Feeding, crushing and screening machines are all-in-one carbody.
●     2. Customized Design:High crushing ratio. The heavy hammer crusher could crush large size stone into small granules.
●     3. Good Performance:Low operation cost. It needs only several workers to work on this plant.



Table Parameters
Model YDHJ1308-1548 YDHJ1310-1848 YDHJ1512-2160
Vibrating Feeder ZSW8530 ZSW8530 ZSW9638
Stone Crusher Heavy Hammer Crusher Heavy Hammer Crusher Heavy Hammer Crusher
Model HJZ1308 HJZ1310 HJZ1512
Feeding Size(mm) ≤600 ≤600 ≤750
Power(kw) 2×55 2×75 2×160
Vibrating Screen 2/3/4YK1548 2/3/4YK1548 2/3/4YK1548
Belt Conveyor B650 B800 B1000
Capacity (t/h) 100-160 120-180 225-350
Overall Size(mm) 11900x2250x6150 11900x2580x6150 15300x2900x6980
Service Support


- 48-hour idling test machine before leaving the factory.

- You can take the materials to the factory test machine.

- We will customize the solution according to your needs.
